?帶寬選件：35 或 50 GHz（可升級）?
邊沿速度（10-90%，典型值）：18 ps（35 GHz）或 7 ps（50 GHz）
通道選件：每個模塊有 2 或 4 個通道（可升級），均提供獨立的偏斜控制，86100D 主機最多有 16 個通道

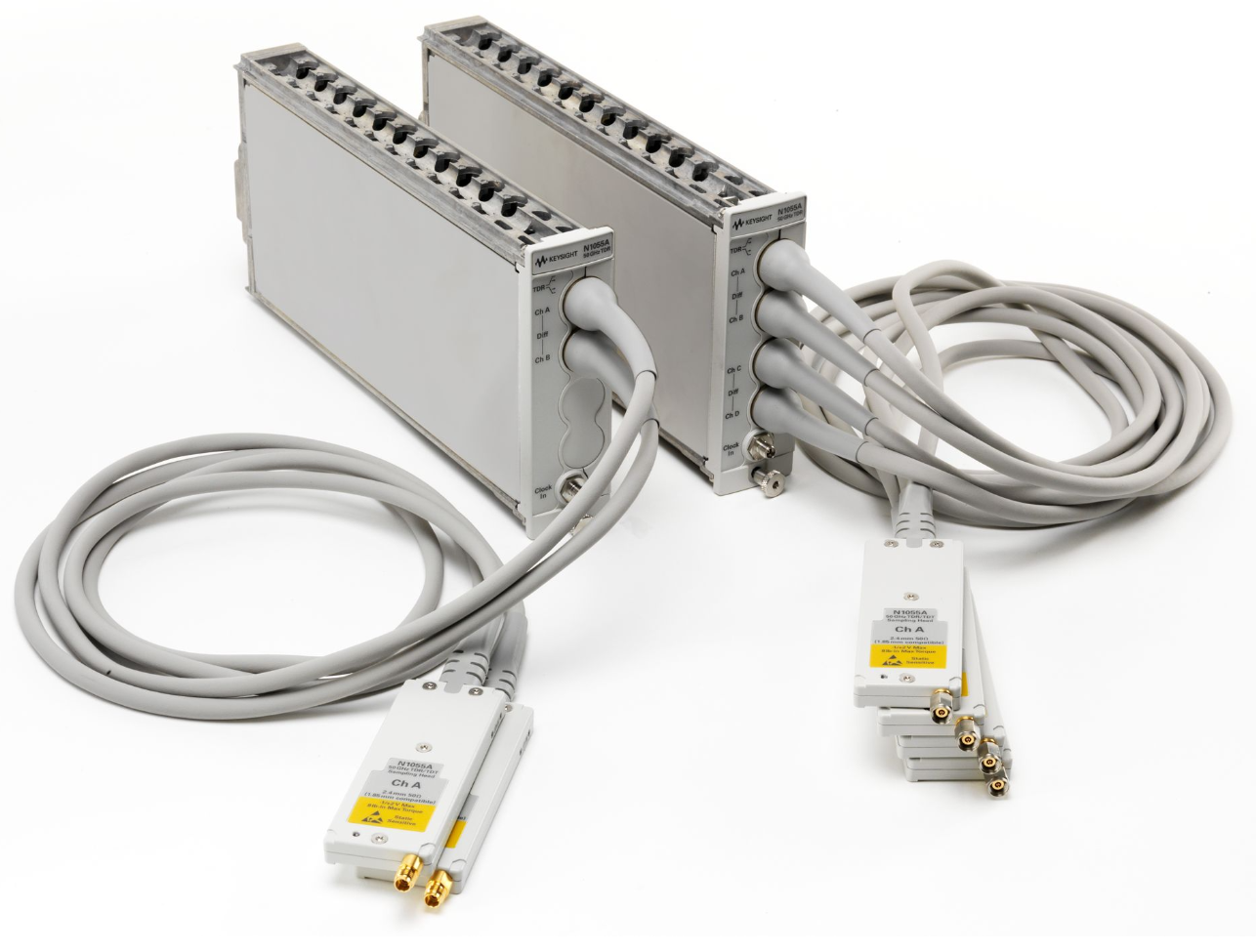

超薄遠程探頭前端：1.6 米穩相電纜、2.92 毫米（35 GHz）或 1.85 毫米（50 GHz）連接器、集成 67 GHz 二極管限幅器提供 ESD/EOS 保護
TDR 夾具去嵌入功能可以消除遠程探頭前端與被測器件之間的夾具、電纜或探頭的影響
通道數 無
支持的數據速率 無
輸入類型 2.92 mm 、1.85 mm
模塊類型 電、TDR
選件
Calibration documentation
N1055A-UK6 Commercial Calibration Certificate with Test Data
Remote Sampling Head with TDR/TDT
N1055A-32F 35 GHz BW, 2 Channel, 2.92 mm, Female
N1055A-32M 35 GHz BW, 2 Channel, 2.92 mm, Male
N1055A-34F 35 GHz BW, 4 Channel, 2.92 mm, Female
N1055A-34M 35 GHz BW, 4 Channel, 2.92 mm, Male
N1055A-52F 50 GHz BW, 2 Channel, 1.85 mm, Female
N1055A-52M 50 GHz BW, 2 Channel, 1.85 mm, Male
N1055A-54F 50 GHz BW, 4 Channel, 1.85 mm, Female
N1055A-54M 50 GHz BW, 4 Channel, 1.85 mm, Male
N1055A-RSD Reserved for RMKT
N1055A-FS1 Fast Sampling
Accessories
N1027A-1CM Protective cap for 1.85 or 2.4 mm male connectors
N1027A-1CF Protective cap for 1.85 or 2.4 mm female connectors
N1027A-1C1 Cable, Assembly Coaxial 1.85MM M/M, 67GHz, 100mm
N1027A-2P8 Microwave Pick-Off Tee 1.85mm connectors,matched pair
N1027A-PT3 Phase Trimmer; DC-26 GHz for external skew adjustment, SMA(f)-SMA(f) (Qty 1)
N1027A-3CF Protective cap for 2.92/3.5 mm female connectors
N1027A-3CM Protective cap for 2.92/3.5 mm male connectors
N1027A-2P3 Microwave Pick-Off Tee 2.92mm connectors, matched pair
N1027A-DC1 Assembly, delay cable, 18.2 ns
N1027A-EQ6 Equalizer, 2.92mm (m) to 2.92mm (f), 6dB
N1027A-EQ9 Equalizer, 2.92mm (m) to 2.92mm (f), 9dB
N1027A-3C2 Cable RF, 2.92 mm, M/M, 4.33 ns delay, 1 m length
N1027A-3C3 Cable RF, SMA, M/M, Data Out/Data In for N1076A
N1027A-3C1 Cable RF, 2.92 mm, M/M, 2.37 ns delay, 0.55 m length
N1027A-EQ3 Equalizer, 2.92mm (m) to 2.92mm (f), 3dB
N1027A-EF6 Equalizer, 6dB, 2.92mm (m/f), up to 56GBd
N1027A-1PB Bracket, remote head probe
N1027A-1CL Clip, cable management
N1027A-2CL Clip, 2 remote heads (Carbon Black)
N1027A-AFP Filler panel (1/4 width)
N1027A-1MC Storage case for N1045x / N1046x module
N1027A-1AC Accessory case for N1045x module
N1027A-3AC Accessory case for N1055A 50 GHz 1.85mm Male
N1027A-3MC Storage case for N1055x module
N1027A-2AC Accessory case for N1055A 50GHz 1.85mm Female
N1027A-4AC Accessory case for N1055A 35 GHz 2.92mm Female
N1027A-5AC Accessory case for N1055A 35 GHz 2.92mm Male
