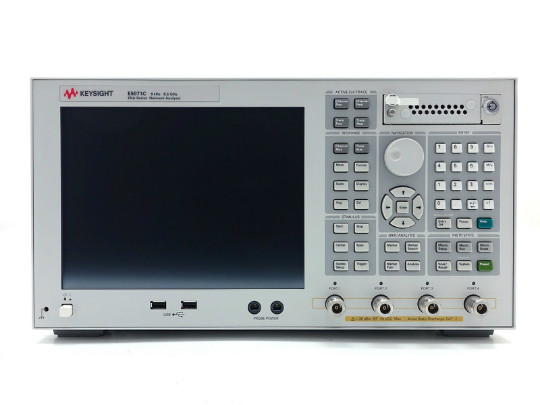

　E5071C ENA 系列網絡分析儀

9 kHz 至 4.5/6.5/8.5/14/20 GHz
2 或 4 端口，50 Ω，S 參數測試儀
具有 130 dB 寬動態范圍、8 ms 快速測量速度和 0.005 dB/ °C 的出色溫度穩定度，可改善測量精度、提高產品良率并增加設計裕量
增強時域分析選件可對高速串行互連進行全面表征，增強您對設計的信心
所有選件均可升級，保護您的投資

Additional features
E5071C-010	時域分析選件時域反射與傳輸響應 多達 20,001 點低通或帶通模式可選測量查看詳情
E5071C-790	測量向?qū)е郑∕WA）軟件適用于 E5071C 和 E5091A/E5092A 可配置多端口測試儀簡化多端口器件測量利用逐步設置向?qū)?，輕松且快速地完成測量設置配有多端口測試儀的測量連通性矩陣利用校準向?qū)В蟠罂s短操作時間包含合格/不合格極限測試的自動測試程序
E5071C-008	頻率偏置模式測量混頻器和轉換器等器件的傳輸響應 頻偏掃描、SMC、VMC、外部信號發生器控制和諧波失真測量查看詳情
E5071C-TDR	E5071C-TDR 增強型時域分析選件同步時域（TDR/TDT）和頻域（S 參數）實時測量無需外部比特碼型發生器的眼圖測試互連極限眼圖分析有源器件阻抗分析 ESD 抗擾性查看詳情

Timebase stability
E5071C-UNQ	Standard stability timebase
E5071C-1E5	High stability timebase

Calibration documentation
E5071C-1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)
E5071C-A6J	ANSI Z540-1-1994 Calibration

Test set
E5071C-280	2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-285	2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-480	4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-485	4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-240	2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-245	2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-2K5	2-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-440	4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-4K5	4-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-445	4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-4D5	4-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-465	4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-460	4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-2D5	2-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-265	2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-260	2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

Hard disk drive options
E5071C-017	Removable Data Storage
E5071C-019	Standard Data Storage

Accessories
E5071C-1CM	Rack mount kit
E5071C-1CN	Front handle kit
E5071C-1CP	Rack mount and front handle kit
E5071C-810	Add keyboard
E5071C-820	Add mouse

頻率	20 GHz
動態范圍	123 dB
輸出功率	10 dBm
軌跡噪聲	0.003 dBrms
內置端口數量	2 或 4 端口
諧波	-25 dBc
本底噪聲	-131 dBm
掃描速度可達 201 個點	5 ms
應用	S 參數 多端口平衡測量
元器件	電纜混頻器/變頻器放大器諧振器
臺式	是
